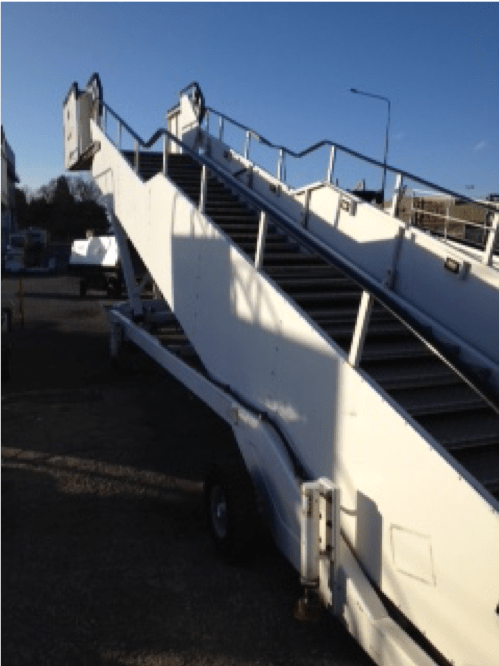

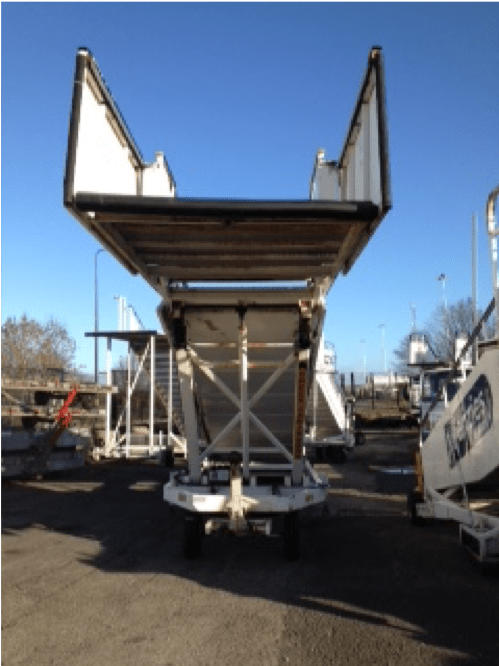

STAIR Mallaghan HR

About this product

Minimum Platform Height – 2300 mm
Maximum Platform Height – 5800 mm
Inside Stair Width (lower) – 1400 mm
Top Platform Width – 1800 mm
Top Platform Length – 2600 mm
Step Riser Height “Min” – 90 mm
Step Riser Height “Max” – 200 mm
Step Thread Length – 325 mm
Handrail Height – 1000 mm
Wheelbase – 5540 mm
Main Extension Cylinder – Variable Hydraulic
Construction – All Steel with Aluminium
Suspension – Rigid

Dimensions
Length – 11320 mm
Width – 2400 mm
Height – 3300 mm
